Description
- IP68 Waterproof Rating
- Convenient Carrying
- Built to Last
- Warranty Extension: 3-year warranty + 2-year extended warranty
Jackery SolarSaga 200W Solar Panel features a high solar conversion efficiency - go green quickly. The ETFE-laminated case extends its lifespan, and the recommended angle ensures optimum absorption of the sunlight, making it the perfect power source for outdoor travel and home backup. It is portable, foldable, and can be hooked up instantly with a power station for the ideal solar power system.
Features Summary
Easy to Use and Portable
Instant Set Up Solar Energy System
Within 60 seconds to set up, the solar panel stands firmly and can ensure optimum absorption of the sunlight thanks to its adjustable kickstands. It is the perfect companion for outdoor travel.
Foldable design for easy transport. It's also compact and lightweight for carrying on your outdoor activities. Simply fold the solar panel in two, in seconds and you'll be good to go, with convenient power at your fingertips in an instant.
Built to Last
The ETFE-laminated case ensures the solar panel is durable enough for a longer lifespan. Additionally, the IP68 Waterproof Rating allows it to withstand harsh and wet weather.
Convenient Carrying
Product Details
Specs in Pictures
Specs
Jackery SolarSaga 200W Solar Panel
Solar
Maximum Power (Pmax):200W ± 5%
Voltage at Open Circuit (Voc):24.8V ± 5%
Current at Short Circuit (Isc):11.2A ± 5%
Optimum Operating Voltage (Vmp):20V ± 5%
Optimum Operating Current (Imp):10A ± 5%
Dimensions

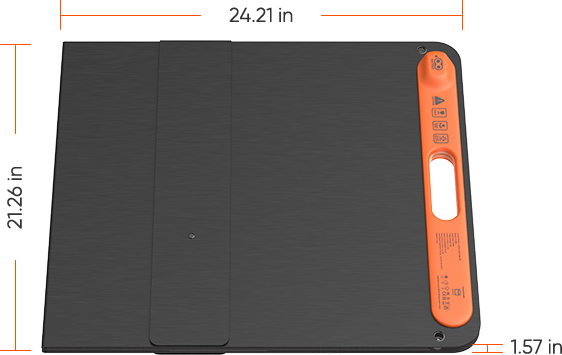

Folded:24.21 x 21.73 x 1.57 in (615 x 552 x 40 mm)

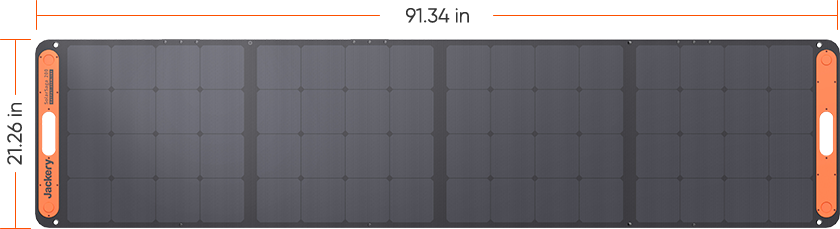

Unfolded:92.13 x 21.73 x 0.98 in (2340 x 552 x 25 mm)
Weight:14.1 lbs ± 0.7 lbs (6.4 kg±0.3 kg)
General
Warranty:3+2 Years
Maximum System Voltage:60V
Maximum Reverse Current:15A
Protection Class Against Electric Shock:Class II
Waterproof:IP68
Operating temperature:-4℉~149℉（-20°C~65°C）
Voltage Temperature Coefficient:-0.268%/°C
Power Temperature Coefficient:-0.29%/°C
In The Box
1 x SolarSaga 200 1 x User Manual
Portable Power Station
Explorer 3000 Pro:Up to 6 Pcs (with 2 solar connectors)
Explorer 2000 Pro:Up to 6 Pcs (with 2 solar connectors)
Explorer 1500 Pro:Up to 4 pcs (with 2 solar connectors)
Explorer 1500:Up to 2 Pcs
Explorer 1000 Pro:Up to 4 Pcs (with 2 solar connectors)
Explorer 1000:Up to 1 Pc
