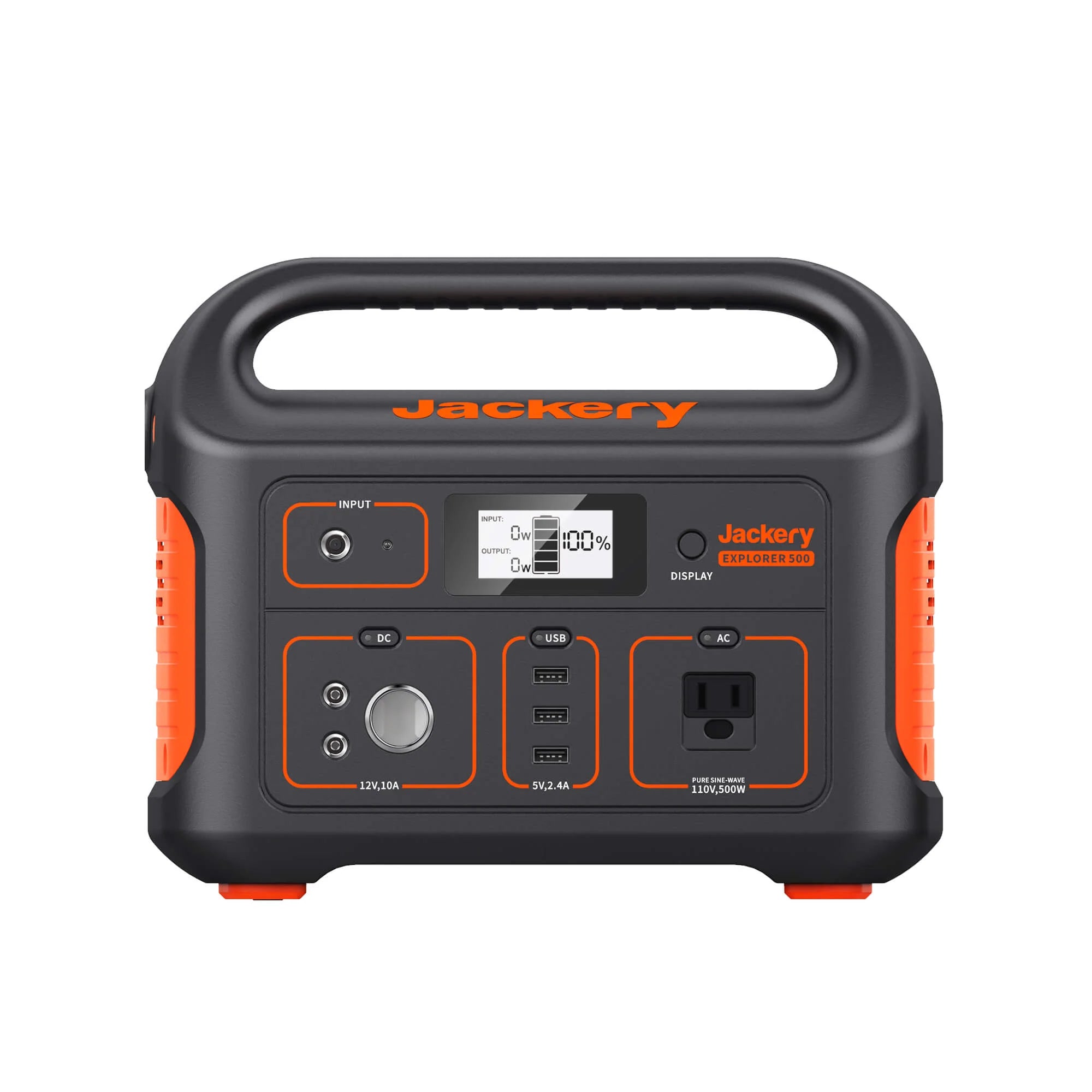

Jackery Explorer 500 Portable Power Station

High Battery Capacity

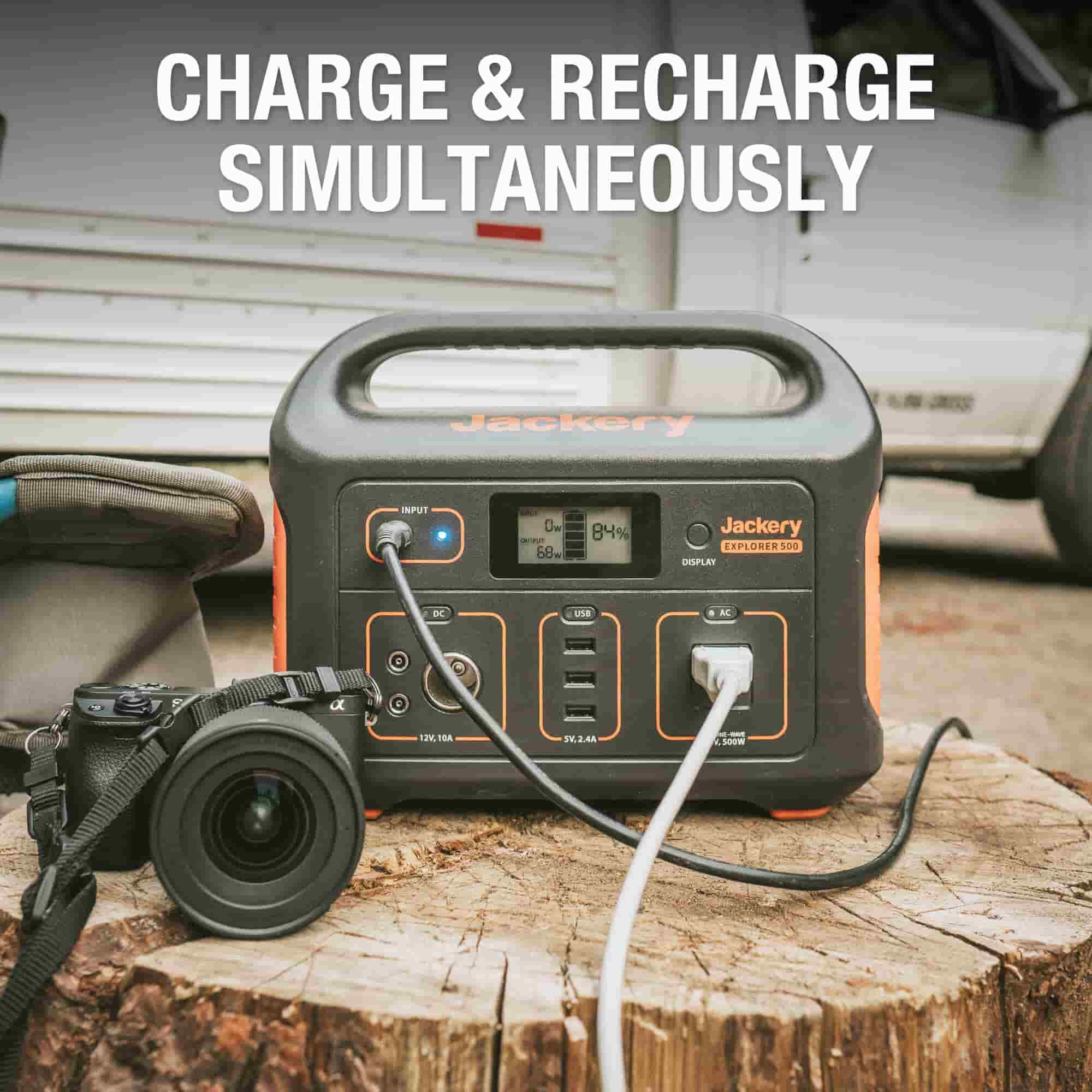

Jackery Explorer 500 Portable Power Station features 1 * AC outlet, 2 * DC ports, 1 * car port, and 3 * USB-A ports to charge low to high-power appliances, including air pumps, CPAP machines, TV, mini-refrigerators and more. Its compact size and lightweight design make the power station ideal for road trips and RV camping.

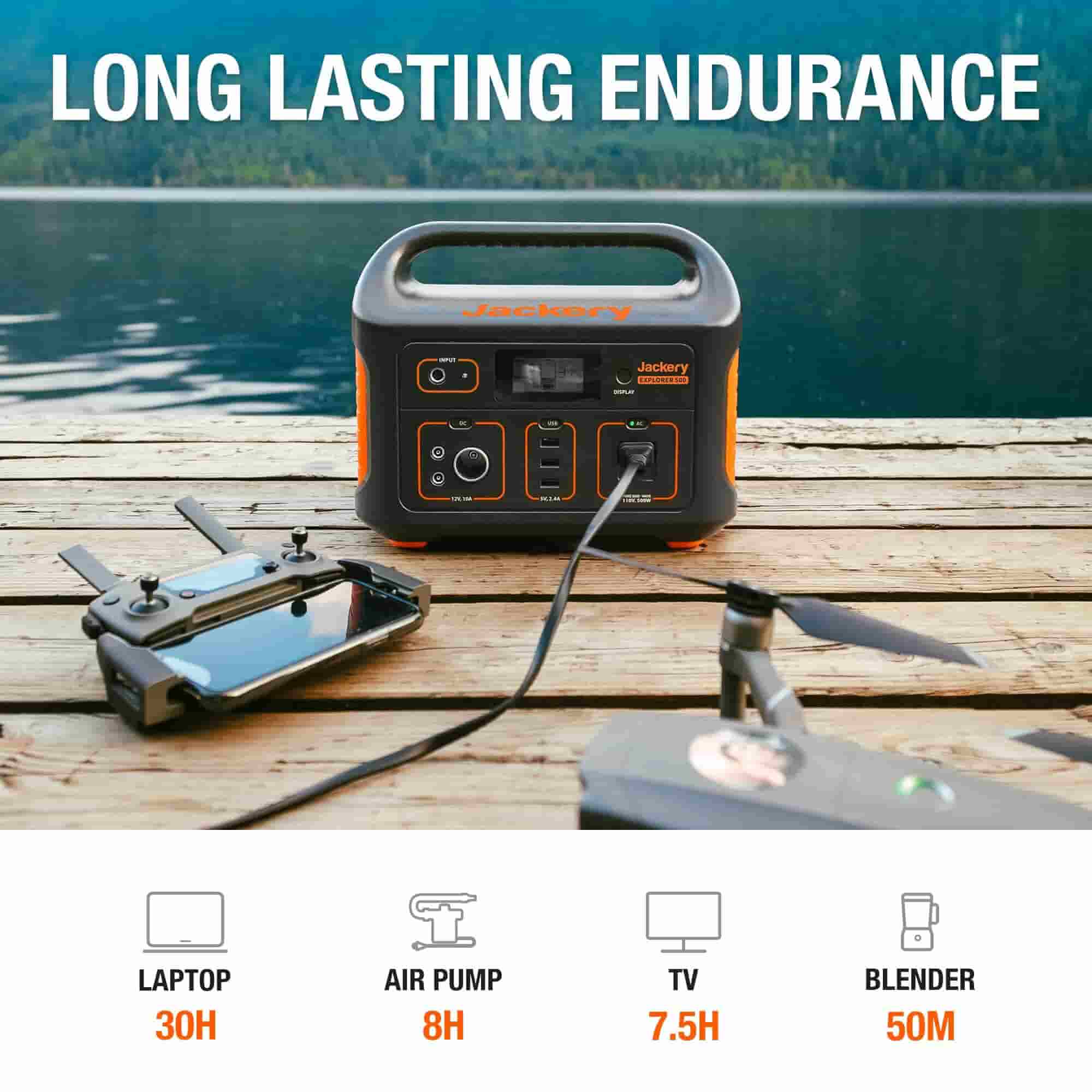

Long Battery Life

The best feature of the Jackery Explorer 500 Power Station is its long battery life. Even after completing 800 charge cycles, the power station will have 80% battery capacity.

Ultimate Protection

The intelligent BMS (Battery Management System) and pure sine wave inverter deliver stable power to the appliances. The state-of-the-art temperature sensors ensure the power station is suitable for extreme weather conditions.

Lightweight and Portable

Strong and Reliable

The portable power station is exceptionally durable and can withstand hot and cold temperatures. The high-quality built-in MPPT charge controller and pure sine wave inverter protect the power station against short circuits, overcharge, overvoltages and more.

Clean and Green Solution

Jackery Explorer 500 Portable Power Station does not emit fumes or use fuels, making it an eco-friendly and renewable power solution for camping, RV trips, off-grid living, and home backup.

（2+1）Years Warranty

In addition to having a durable, lightweight, and portable design, the power station is backed by an additional 2-year warranty and a 1-year extended warranty. If you face any problems during product usage, feel free to contact Jackery's customer support team.

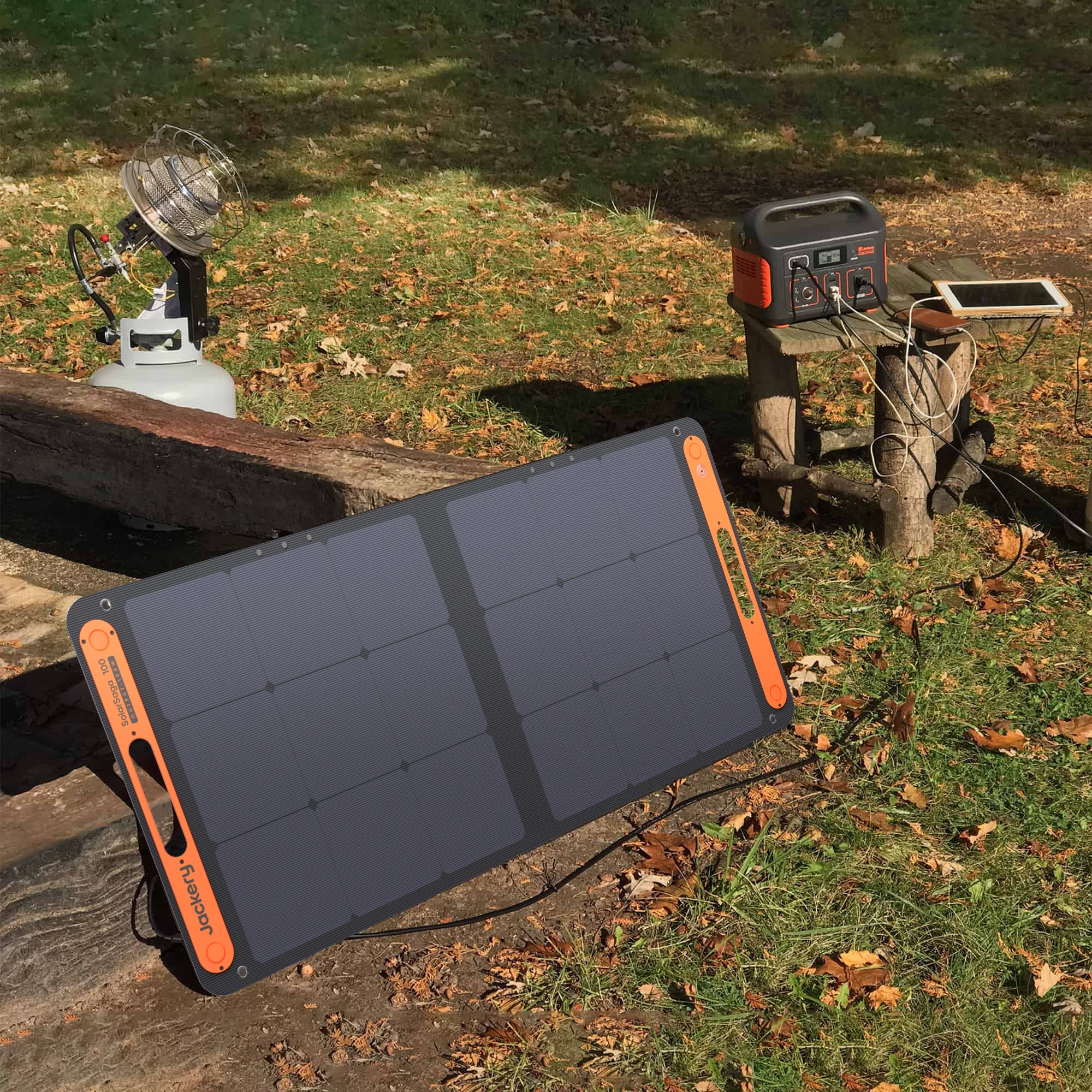

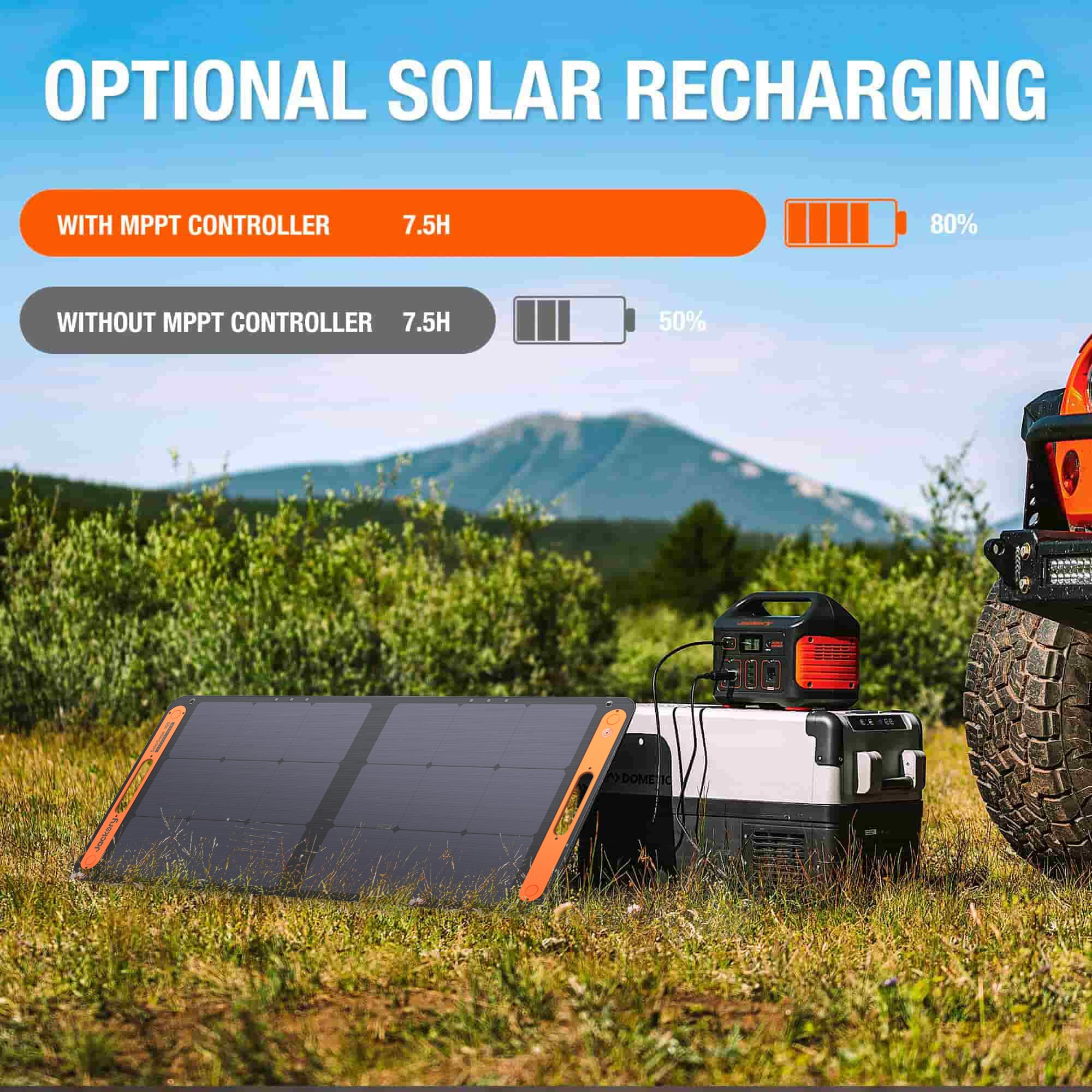

How to Connect Explorer 500 with SolarSaga 100?

PREPARING YOUR SOLAR GENERATOR

The Explorer 500 can be fully charged under straight full sun in 9.5 hours by connecting SolarSaga 100W solar panel.





Solar recharging steps:



1. Find the DC interface on the back of SolarSaga 100;

   2. Connect the DC interface of SolarSaga 100 with DC input of Explorer 500

Product Details

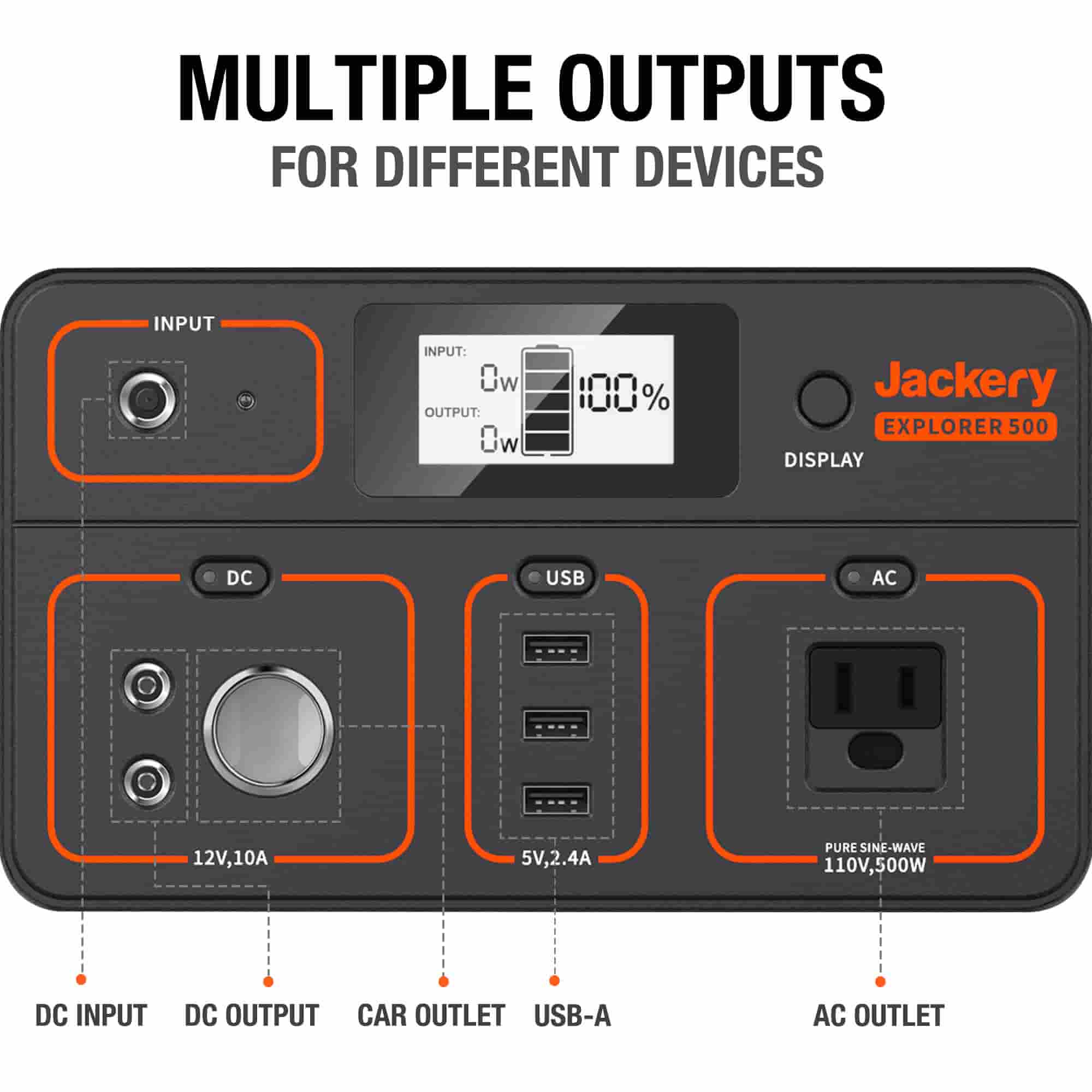

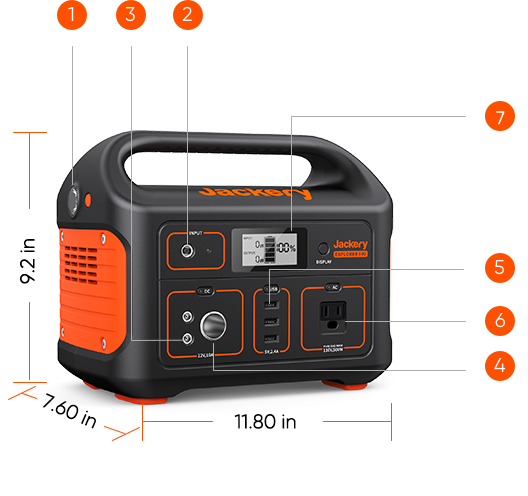

Specs in Pictures

• LED Flashlight
• DC Input
• DC Output
• Car Port
• USB Output
• AC Output
• LCD Screen

Specs

Jackery Explorer 500 Portable Power Station(Jackery Explorer 500)

Battery

Capacity:518Wh

Cell Chemistry:Lithium-ion

Cycle life:500 cycles to 80%+ capacity

Management System:BMS, Over Voltage Protection, Short Circuit Protection

Ports

AC Output(x1):110V, 60Hz, 500W (1000W Peak)

DC Output(x2):12V⎓7A

USB-A Output(x3):5V⎓2.4A

Car Port(x1):12V⎓10A

AC Input:doesn't support direct AC charging - use external AC charger provided

DC Input:24V⎓3.75A

Dimensions

Weight:13.3lbs(6kg)

Height:9.5in(24.2cm)

Width:7.6in(19.2cm)

Length:11.8in(30cm)

Charging Time(0-100%)

AC Adapter:7.5 Hours

Car Adapter(12V):7.5 Hours

Solar Panel:1 x SolarSaga 100W Solar Panel: 9.5 Hours

General

Warranty:2+1 Years

Operating Usage Temperature:-10-40℃ (14-104℉)

Solar Panel Combination

Solar Saga 100:Up to 1 Pc

Solar Saga 200:Up to 1 Pc

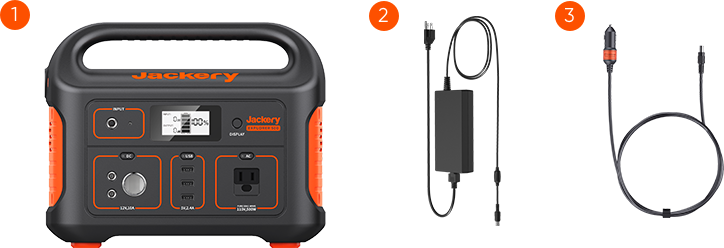

What's in The Box

• 1* Explorer 500
• 1* AC & AC Cable (2 Parts)
• 1* Car Charger Cable
• 1* User Manual (Explorer 500)

Notes:
1. Solar panel types and quantity depends on your purchase.
2. Buy 2 SolarSoga, get 1*Solar Panel Connector.
3. Buy 4 or 6 SolarSoga, get 2*Solar Panel Connectors.
